48V100ah 200ah Eve battery LFP lithium battery 5kwh 25kwh solar energy storage battery PC RS485 RS232

Product Name: 48V100Ah 200Ah Eve Battery LFP Lithium Battery 5kwh 25kwh Solar Energy Storage Battery PC RS485 RS232 Specification:48V100Ah 200Ah Eve Battery LFP Lithium Battery 5kwh 25kwh Solar Energy Storage Battery PC RS485 RS232 No.ItemsSpecifications1Nominal Voltage51.2V2Nominal Capacity100Ah3Cell Inside

Featured Products

Product Name:
48V100Ah 200Ah Eve Battery LFP Lithium Battery 5kwh 25kwh Solar Energy Storage Battery PC RS485 RS232
Specification:48V100Ah 200Ah Eve Battery LFP Lithium Battery 5kwh 25kwh Solar Energy Storage Battery PC RS485 RS232
No.ItemsSpecifications
1Nominal Voltage51.2V
2Nominal Capacity100Ah
3Cell Inside LiFePO4 3.2V100Ah cell
4Configuration 16S1P
5Standard Charge Current0.2C-0.5C
6Max. Charge Current1C
7Battery management System (BMS)Built-in, over-current,over-charge,over-discharge,short-circuit protection,tec.
8Continuous Discharge Current100A
9Peak Discharge Current200A
10Full Charged Voltage58.4V(3.65V per cell)
11Charge Cut-off Voltage62.4V(3.9V per cell)
12Discharge Cut-off Voltage32V  (2.0V per cell)
13Net Weight38kg(approx.)
14Dimensions
442*385*220mm (approx.)

15ConnectorAnderson Connectors
16Operating TemperatureCharging:  0°C ~ 45°C
Discharging: -20°C ~ 55°C
17Storage Temperature (Recommended to store 20 ± 5°C for long term storage)
18Cycle Life3500 times (80% of initial capacity at 0.2C rate, IEC Standard)

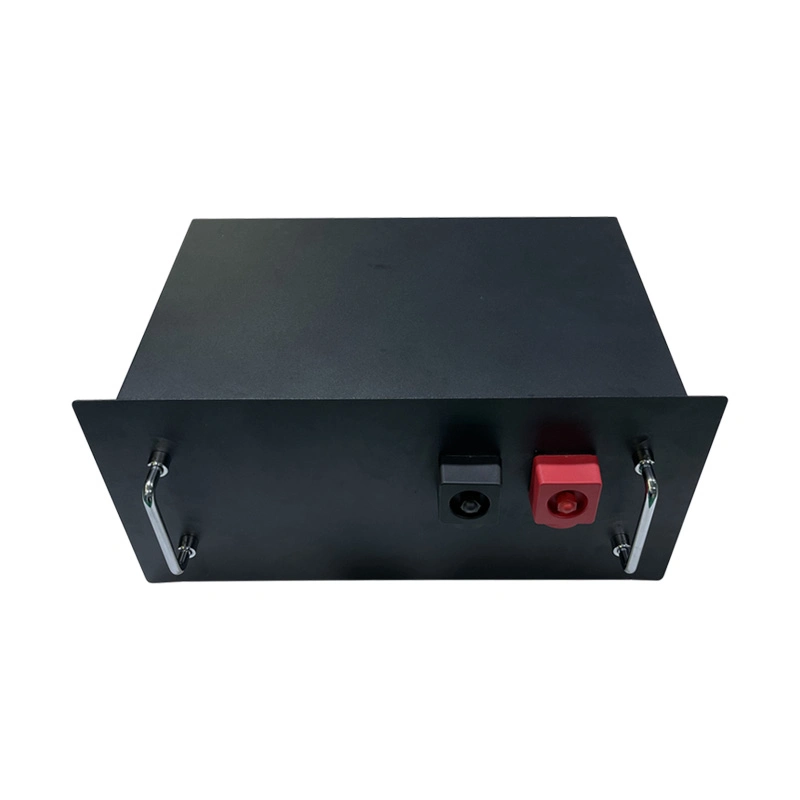

Details Pictures:
48V100ah 200ah Eve Battery LFP Lithium Battery 5kwh 25kwh Solar Energy Storage Battery PC RS485 RS23248V100ah 200ah Eve Battery LFP Lithium Battery 5kwh 25kwh Solar Energy Storage Battery PC RS485 RS23248V100ah 200ah Eve Battery LFP Lithium Battery 5kwh 25kwh Solar Energy Storage Battery PC RS485 RS23248V100ah 200ah Eve Battery LFP Lithium Battery 5kwh 25kwh Solar Energy Storage Battery PC RS485 RS23248V100ah 200ah Eve Battery LFP Lithium Battery 5kwh 25kwh Solar Energy Storage Battery PC RS485 RS23248V100ah 200ah Eve Battery LFP Lithium Battery 5kwh 25kwh Solar Energy Storage Battery PC RS485 RS23248V100ah 200ah Eve Battery LFP Lithium Battery 5kwh 25kwh Solar Energy Storage Battery PC RS485 RS232
48V100ah 200ah Eve Battery LFP Lithium Battery 5kwh 25kwh Solar Energy Storage Battery PC RS485 RS232
48V100ah 200ah Eve Battery LFP Lithium Battery 5kwh 25kwh Solar Energy Storage Battery PC RS485 RS232
Applications: home solar energy storage
48V100ah 200ah Eve Battery LFP Lithium Battery 5kwh 25kwh Solar Energy Storage Battery PC RS485 RS232
