What is TBB solar charge controller?

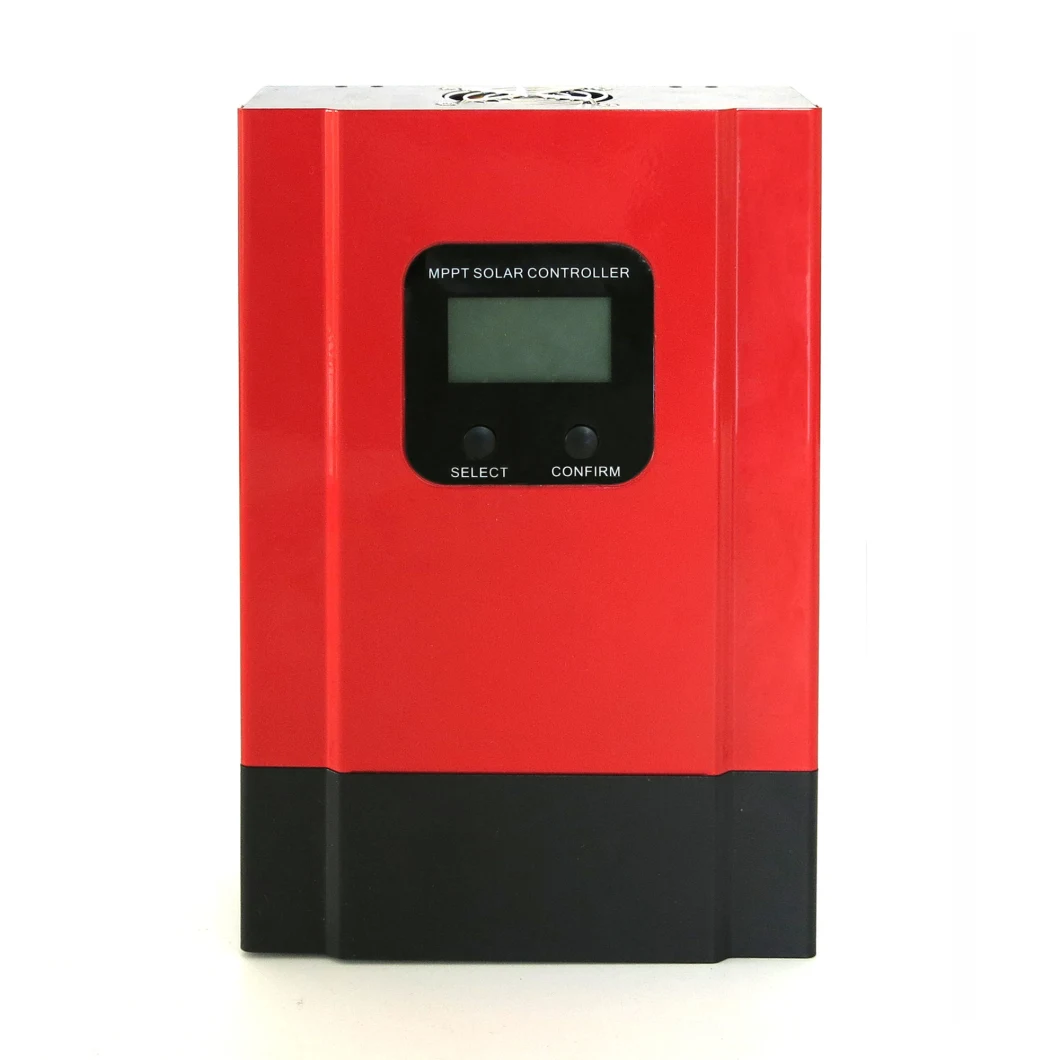

Solar Mate is a solar charge controller with built in MPPT(Maximum Power Point Tracking) technology, which enables them to increase the output from a PV(solar photovoltaic) array by as much as 30% compared with non-MPPT designs.
Solar Mate can optimize the PV's output and eliminate the fluctuation due to shading or temperature variables. It is a multi-voltage MPPT with built in sophisticated battery charging algorithm for both lead acid battery or lithium-ion battery, of which could support a wide variety of system designs. Meanwhile, the data management with 365 days of history record can tell user actual performance of its system.
Thanks to its self cooling design, it is suitable for most rugged environment with dust or bugs. All range products can operate at their full rating in ambient temperatures as high as 40ºC.
What are TBB solar charge controllers' advantages:
- MPPT conversion efficiency 99.9%
- No power derating for continuous output.
- Wide MPPT operating voltage range from 50V to 250V
- Up to 8 units in parallel.
- 12V/24V/48V battery system automatic recognition.
- TBB premium multiple stages charging for lead acid batteries.
- Low self consumption
- Data logging 365 days
What is the application of a solar charge controller?
Solar charge controllers are widely used in following DC systems:
Product specification
| SP100-20 | SP100-40 | SP150-60 | SP150-80 | SP150-120 | SP250-70 | SP250-100 | ||
| Electrical | ||||||||
| Nominal battery voltage | 12,24 or 48VDC | 24,or 48VDC | ||||||
| Maximum charging current (A) | 20 | 40 | 60 | 80 | 120 | 70 | 100 | |
| Maximum charging power(W) | 588 | 1176 | 3528 | 4704 | 7056 | 4116 | 5880 | |
| Recommended PV (W) | 12Vdc | 300 | 560 | N/A | ||||
| 24Vdc | 600 | 1200 | 2250 | 3000 | 4500 | 2700 | 3750 | |
| 48Vdc | 1200 | 2400 | 4500 | 6000 | 9000 | 5400 | 7500 | |
| PV open circuit voltage (Voc) (VDC) | 100 | 150 | 250 | |||||
| MPPT voltage range (VDC) | (Vbat+5)~95 | (Vbat+5)~90 | 65~145 | 65~245 | ||||
| Max. PV short circuit current(A) | 20 | 40 | 80 | |||||
| Max efficiency | 98.2% @48Vdc system | 98%@48Vdc system | ||||||
| Max MPPT efficiency | 99.9% | |||||||
| Self-consumption (mA) | Less than 1mA@12Vdc/ 3mA @ 24Vdc/ 5mA @ 48Vdc | Less than 60mA@24Vdc/ 37mA @ 48Vdc | ||||||
| Charge voltage 'absorption' (VDC) | Default setting: 14.1/ 28.2/56.4 | Default setting: 28.2/ 56.4 | ||||||
| Charge voltage 'float' (VDC) | Default setting: 13.5 / 27/54 | Default setting: 27 / 54 | ||||||
| Charging algorithum | TBB II multiple stages | |||||||
| Temperature compensation | Default setting: -3mV/ºC/cell | |||||||
| Equalization charging | Programmable | |||||||
| Others | ||||||||
| DisPlay | LED+LCD | |||||||
| Communication port | RS485, Bluetooth | |||||||
| Dry contact | 30Vdc/2A | |||||||
| Remote on/off | Yes (2 pole connector) | |||||||
| Data logging | 365 days of history record,daily,monthly and total production;Real time figure including solar array voltage,battery voltage,charging current,charging power;Record the daily PV start charging time,absorb to floating transfer time,PV power loss time and etc; Real time fault time and information. | |||||||
| Storage temperature | -40ºC~70ºC | |||||||
| Operating temperature | -40ºC~70ºC (power derated above 50ºC) | -40ºC~70ºC (power derated above 30ºC) | -25ºC~ 60ºC (power derated above 40ºC) | |||||
| Humidity | 5%~95%, non-condensing | |||||||
| Altitude | 3000m (full rated output up to 2000m) | |||||||
| Max wire sizes (mm2) | 16 | 35 | ||||||
| Protection category | IP21 | |||||||
| Dimension (L*W*H) - mm | 205*160*68.5 | 327.5*293*116.2 | 353*293*116.2 | |||||
| Weight (kg) | 1.4 | 7.2 | 7.5 | |||||
| Cooling | Natural cooling | Forced fan | ||||||
| Standard | EN61000-6-1,EN61000-6-3, EN62109-1 | |||||||
