New Simply Light Model High Efficiency Monocrystalline Solar Panels City Power & Solar Hybrid Street Lights

Product Description 1,SpecificationNoItemPictureParameters1TXLED05 Led LampPower:20w/30w/40w/50w/60w/80w/100w/120w/150wChip:Lumileds/Bridgelux/Cree/EpisterLumens:100-120lm/wVoltage:DC12V/24VColor temperature:3000-6500K2Solar Panels      Power:60w/90w/120w/75w*2/90w*2/120w*2/150w*2/180w*2/200w*2Nominal Vo

Featured Products

Product Description

1,Specification
NoItemPictureParameters
1TXLED05 Led Lamp
New Simplily Light Model High Efficiency Mono Solar Panel City Electricity& Solar Hybrid Street Light
Power:20w/30w/40w/50w/60w/80w/100w/120w/150w
Chip:Lumileds/Bridgelux/Cree/Epister
Lumens:100-120lm/w
Voltage:DC12V/24V
Color temperature:3000-6500K
2Solar Panels
New Simplily Light Model High Efficiency Mono Solar Panel City Electricity& Solar Hybrid Street Light
Power:60w/90w/120w/75w*2/90w*2/120w*2/150w*2/180w*2/200w*2
Nominal Voltage:18v
Efficiency of solar cells:18%
Material:Mono Cells/Poly Cells
3Battery
(Lithium battery available)

New Simplily Light Model High Efficiency Mono Solar Panel City Electricity& Solar Hybrid Street Light
Gel Battery :24AH/30AH/40AH/30AH*2/40AH*2/ 50AH*2/65AH*2/80AH*2
Lithium Battery :14AH/22AH/30AH/36AH/42AH/48AH/56AH
Type: lead-acid / lithium battey
Nominal Voltage:12V/24V
4Battery Box
New Simplily Light Model High Efficiency Mono Solar Panel City Electricity& Solar Hybrid Street Light
Material:Plastic/Steel
5Controller
New Simplily Light Model High Efficiency Mono Solar Panel City Electricity& Solar Hybrid Street Light
Rated Current:10A/15A/20A
Nominal Voltage:12V/24V

6
PoleNew Simplily Light Model High Efficiency Mono Solar Panel City Electricity& Solar Hybrid Street Light
Height: 5m(A); Diameter: 60/140mm(d/D);
Thickness: 3mm(B);Flange Plate:240*12mm(W*T)
Height: 6m(A); Diameter: 60/140mm(d/D);
Thickness: 3mm(B);Flange Plate:240*12mm(W*T)
Height: 7m(A); Diameter: 70/160mm(d/D);
Thickness: 3.5mm(B);Flange Plate:300*14mm(W*T)
Height: 8m(A); Diameter: 70/160mm(d/D);
Thickness: 3.5mm(B);Flange Plate:300*14mm(W*T)
Height: 9m(A); Diameter: 80/180mm(d/D);
Thickness: 4.0mm(B);Flange Plate:350*18mm(W*T)
Height: 10m(A); Diameter: 80/200mm(d/D);
Thickness: 4.0mm(B);Flange Plate:350*18mm(W*T)
7Anchor Bolt
New Simplily Light Model High Efficiency Mono Solar Panel City Electricity& Solar Hybrid Street Light
4-M16;4-M18;4-M20;4-M24
8Cables
12m/15m/18m/20m/25m/30m
9Wind Turbine
100w wind turbine for 20w/30w/40w led lamp
Rated Voltage:12/24V
Packing Size:470*410*330mm
Security Wind Speed:35m/s
Weight:14kg
300w wind turbine for 50w/60w/80w/100w led lamp
Rated Voltage:12/24V
Security wind speed:35m/s
G.W:18kg

The configuration above is for your reference,you can reply me your request,or reply me:
(1)The watt of lamp
(2)The working hours that the solar street light need to work every night
(3)Continous rainy and cloudy days

2,Product Description

New Simplily Light Model High Efficiency Mono Solar Panel City Electricity& Solar Hybrid Street Light

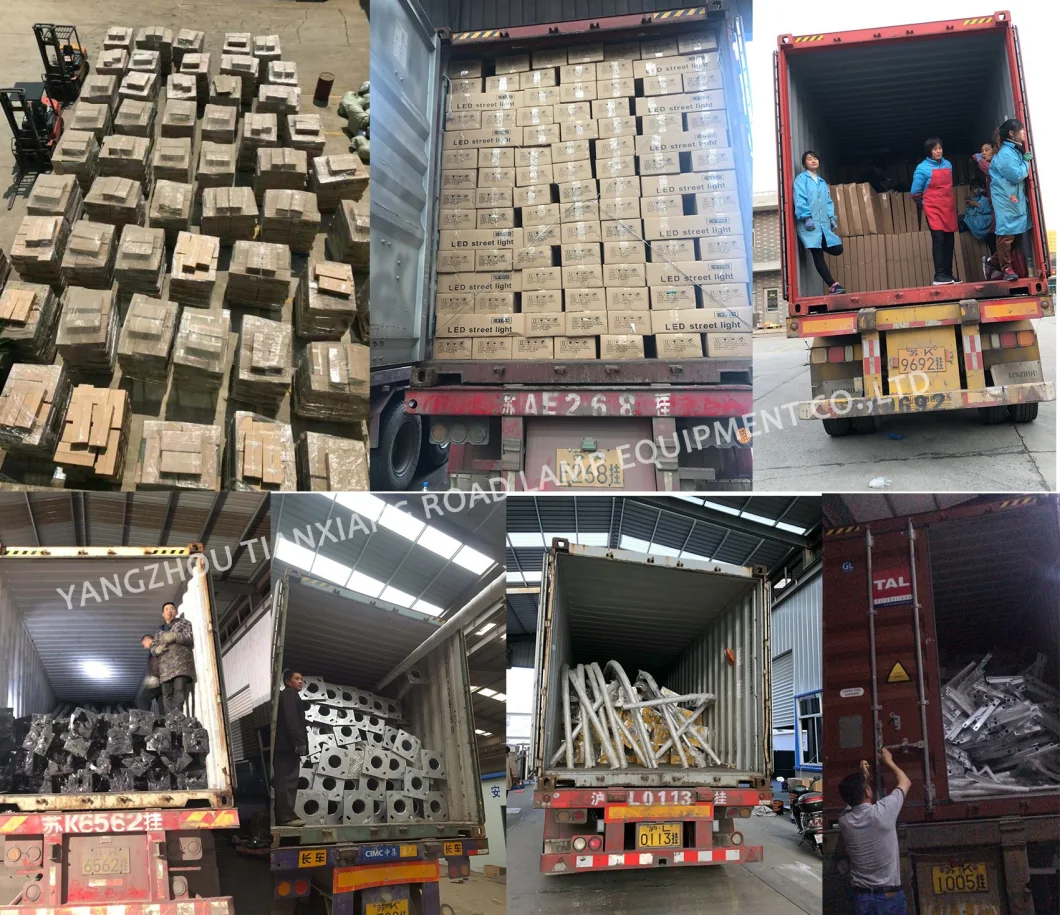

3,Package and loading

New Simplily Light Model High Efficiency Mono Solar Panel City Electricity& Solar Hybrid Street Light
4,Application project

New Simplily Light Model High Efficiency Mono Solar Panel City Electricity& Solar Hybrid Street Light

5,Certifications

New Simplily Light Model High Efficiency Mono Solar Panel City Electricity& Solar Hybrid Street Light

6,Exhibition

New Simplily Light Model High Efficiency Mono Solar Panel City Electricity& Solar Hybrid Street Light

7,FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
