Power generation solar storage system 300kw off grid price

Principle of solar energyThe Off-Grid solar system is an electricity generating solar PV power system that is not connected to the utility(State) grid, and has to be connected with batteries for electricity storage.It consists of solar panels, Charge Controller(regulator), Battery,off grid Inverters, Mounting Brackets and solar

Featured Products

Principle of solar energy
The Off-Grid solar system is an electricity generating solar PV power system that is not connected to the utility(State) grid, and has to be connected with batteries for electricity storage.

It consists of solar panels, Charge Controller(regulator), Battery,off grid Inverters, Mounting Brackets and solar system connection equipments such as MC4, PV Cable and Installation Tool Box.

Users can store the excess power in the batteries for usage at night or backup of sudden power cut. The inverter converts the DC power into AC for loads single phase(110/120V;220/230/240Vac) or three phase(240V;380V;480Vac)etc. It is also called Stand Alone System(SAPS) functioned as UPS.

Electricity Production Solar Storage System 300kw off Grid Price

300KW OFF GRID SOLAR SYSTEM CONFIGURATION
No.PhotoItemSpecificationQuantity Warranty
1Electricity Production Solar Storage System 300kw off Grid PriceSolar PanelsRosen PV Module
Model:RS380M-72
Mono 380W 72cells
Dimension: 1956*992*40mm
Weight: 22kg
800 pcs25 Years
2Electricity Production Solar Storage System 300kw off Grid PricePV Combiner BoxRosen DC Combiner Box
10 input 1 output
(Switches,Breaker,
SPD, Anti-lightning)
5 pcs10 Years
3Electricity Production Solar Storage System 300kw off Grid PriceOff Grid InverterPure Sine Wave inverter
300KW 384Vdc
AC Three Phase 3L/N/PE
EU: 380/400/415/480V
US: 240/480V
Frequency: 50/60Hz
1 pcs10 Years
4Electricity Production Solar Storage System 300kw off Grid PriceCharge ControllerMPPT/PWM Regulator
384Vdc 150A
Automatical recognition
LCD Screen, IP67 Protection
5 pcs10 Years
5Electricity Production Solar Storage System 300kw off Grid PriceDeep Cycle
Battery
GEL/AGM Batteries
Voltage:12V
Capacity:250Ah Optional
Deep Cycle Maintenance Free
480 pcs5 Years
6Electricity Production Solar Storage System 300kw off Grid PriceMounting BracketAluminium Alloy
/ Galvanized steel
Mounted on the flat/pitched roof or Ground
For roof wind speed up to 40m/s
Customized
1 set20 Years
7
Electricity Production Solar Storage System 300kw off Grid Price
PV CableSingle-core PV Cable
4/6/10/25mm² (+;-) etc,
UV Protection
6000 mts20 Years
MC4 compatible connector30A 1000Vdc,
Male/Female/Fuse
IP67 Rated
800 pairs15 Years
Installation ToolsWire stripper;
wire cutters;
Crimping pliers
For TYCO connector etc
1 set10 Years
Technical Specification, Installation Manual, Quotation List:  00-86 159-55104975 (Tel )
Electricity Production Solar Storage System 300kw off Grid Price

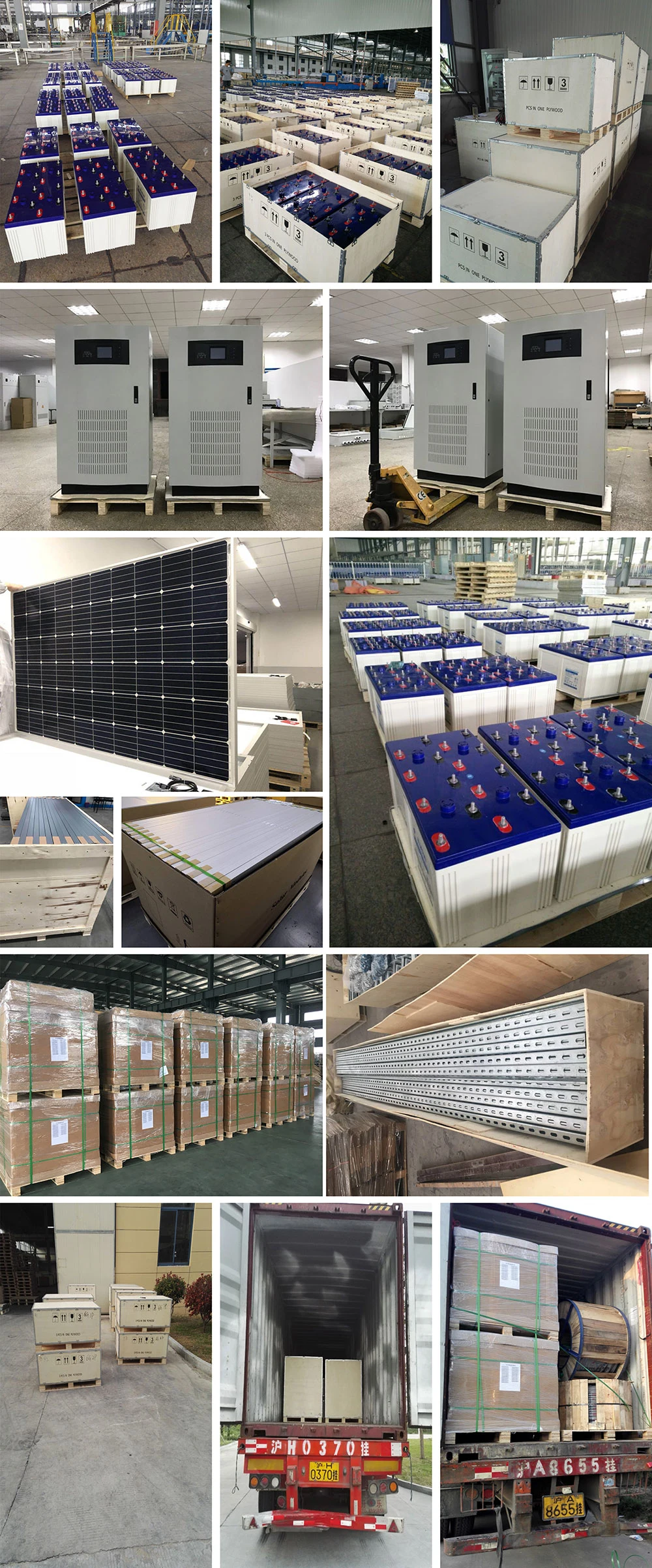

Ready for Installation Package and Delivery
Electricity Production Solar Storage System 300kw off Grid Price

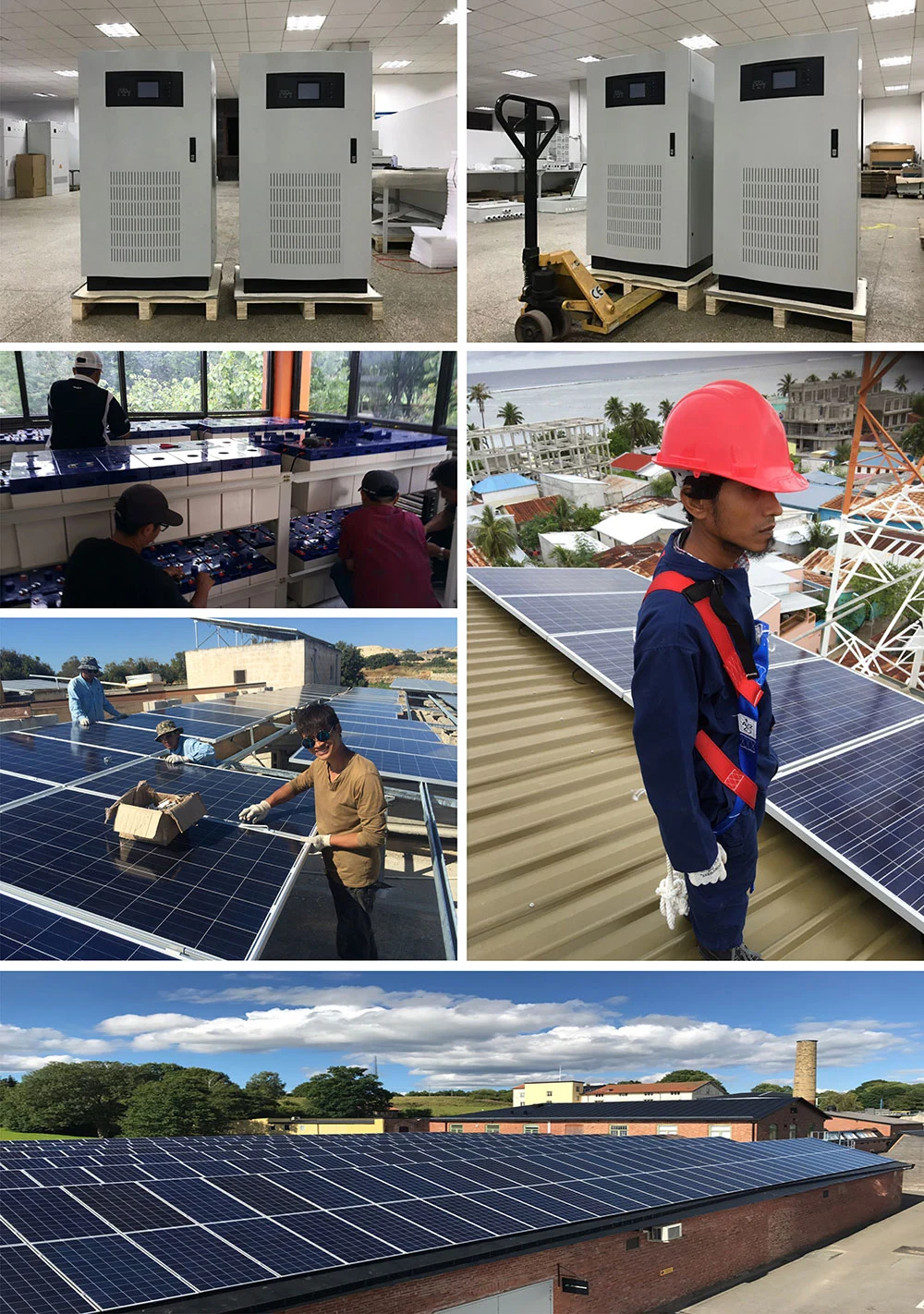

Our Projects
Rosen Off Grid Projects are installed all around the world, mainly in Africa, South America, Mid-East, Asia etc,for rooftop or ground installation, with Residential Systems 1-20Kilowatts, Commercial systems 30-300Kilowatts and Industrial projects with battery storage.
