Tanfon 5KW off-grid three phase solar power system configuration
|solar panel||350w mono panel||16|
|pv combiner||H4T/96V pv combiner||1|
|solar controller||60A/96V solar controller||1|
|solar inverter||5kw/96v IGBT inverter||1|
|solar battery||12v/200AH gel battery ||8|
|mounting structure||on ground or on roof||1 set|
|cables||8pcs 16mm2*35cm battery cables&2pcs 16mm2*2M battery cables|
4mm2 pv cable for solar panels connection
|MC4 Connector||Rated Voltage:1000V||1 set|
Each part details
> 25 years Warranty
> Highest conversion efficiency of 19%
> Anti-reflective and anti-soiling surface power
loss from dirt and dust
> Excellent mechanical load resistance
> PID Resistant, High salt and ammonia resistance
> Simplify wiring between PV and controller.
> Prevent hot spot effect
> Thunderstorm & surge protection
> Wide range of DC input voltage
> 2 years warranty
> Pure sine wave inverter
> Use copper transformer;
> Bypass function with AC charger;
> Output: 380V-415V 50/60HZ
|Solar Charge Controller |
> Charging efficiency up to 95%
> Charging mode, intelligent control
> Various protection functions
|solar panel bracket|
> Slope Roof or Flat roof or Ground (option)
> Including complete fittings
> Wind load:55 m/s,snow load:1.5 kg/m2
> Structure: Anodized Aluminum +stainless steel, Angle adjustable(other type of rack can be customized as per client's requirement )
Why Tanfon is your right Choice?
Tanfon three Overseas Service Centers
1) Senegal --TANFON ENVISOLAR PRESTIGE SARL
2) Kenya-- Tanfon Solar Kenya Ltd
3) Mozambique--Tanfon solartec Mozambique E servicos,SA
After 12 years of deep development, we have successfully helped many of our customers to grow up and cooperate
together to develop the local market more comprehensively.
Our vision is to open 120 service centers all over the world, to provide you the more convenient and quicker service.
Tanfon can provide you with all professional services. If you need, we will be your side.We sincerely invite you to
join us together!
Solar system application
Solar system case
Products have been sold to more than 130 countries, Importantly, we have a professional installation team,
has been to 32 countries and regions for installation service as well as win good feedback from the customers.

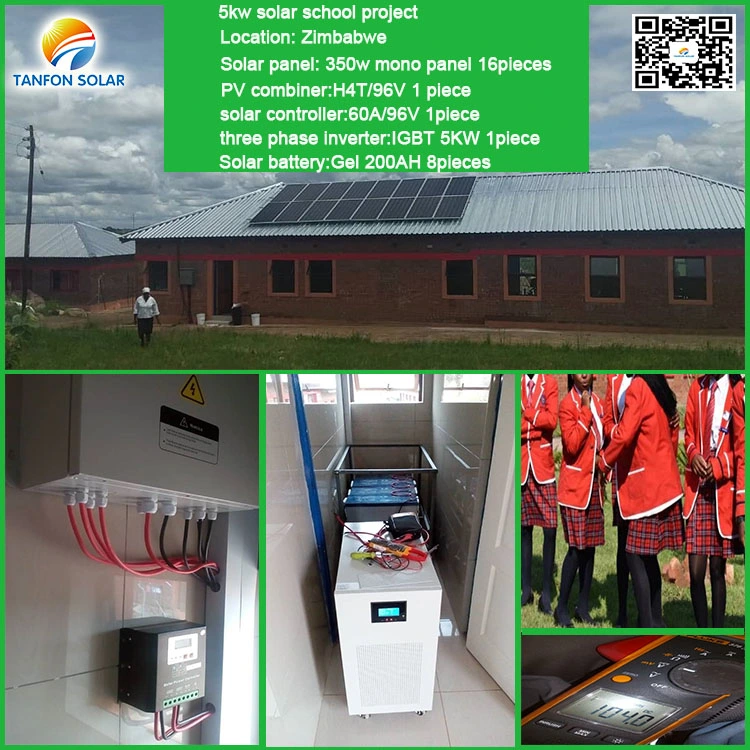

There is no city grid in Zimbabwe for 18 hours a day, it's inconvenient. And many people there try to find other way
to supply power, like solar power and wind power. Patience own a school, they need power for lights, fans, computers
and cooker. And she is very happy to hear that we have 167set solar energy Batteries in Angola schools and 5kw solar
energy Batteries system in Senegal school.
And she is impressed by we have government projects like airport, hospital, police office project, konza building project.
She said there is no company that so professional like us. And order the system without hesitation.
Now the shipment is reach to her school, with the help of electrician Chris, the system is working very well.
We accept OEM and small trial orders, contacting with us now for more informations. All inquiries will be replied within
24 hours. For more informations, please send an inquiry or contact us directly.
